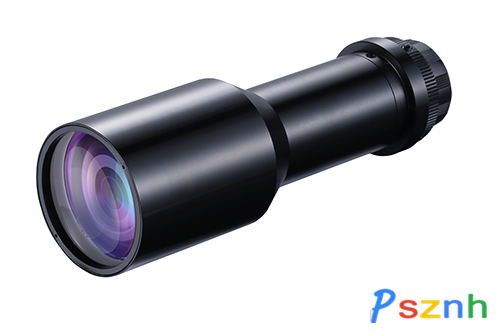

1、支持200万或更高像素分辩率，最大可支持到1/1.8英寸相机
2、物方远心设计，适合于高精度影像定位、检测等
3、标准C接口
4、工作距离微调结构便于安装调试
|
型号 |
照明类型 |
光学放大倍率 |
工作距离 [mm] |
远心度 [。] |
光学畸变 [%] |
景深[mm] |
光学分辩率
|
镜头接口 |
工业相机芯片尺寸对应的FOV[mmxmm] |
||
|
1/3英寸4.8x3.6 |
1/2英寸6.4x4.8 |
1/1.8英寸7.1x5.3 |
|||||||||
|
XWD-HR0.09X150C-5M |
非同轴 |
0.09X |
155 |
0.008 |
0.015 |
50 |
43 |
C |
23.3X17.5 |
31X23.3 |
34.6X26 |
|
XWD-HR0.13X160CT-5M |
同轴 |
0.13X |
160 |
0.02 |
0.08 |
28 |
24 |
C |
34.8X26.1 |
46X34.8 |
51.7X38.9 |
|
XWD-HR0.13X160C-5M |
非同轴 |
0.13X |
160 |
0.02 |
0.08 |
28 |
24 |
C |
34.8X26.1 |
46X34.8 |
51.7X38.9 |
|
XWD-HR0.18X100CT-5M |
同轴 |
0.18X |
100 |
0.02 |
0.07 |
25 |
21 |
C |
25.5X19.1 |
34X25.5 |
37.9X28.6 |
|
XWD-HR0.18X100C-5M |
非同轴 |
0.18X |
100 |
0.02 |
0.07 |
25 |
21 |
C |
25.5X19.1 |
34X25.5 |
37.9X28.6 |
|
XWD-HR0.22X80CT-5M |
同轴 |
0.22X |
80 |
0.02 |
0.07 |
18 |
19 |
C |
23.3X17.5 |
31.1X23.3 |
34.6X26.1 |
|
XWD-HR0.22X80C-5M |
非同轴 |
0.22X |
80 |
0.02 |
0.07 |
18 |
19 |
C |
23.3X17.5 |
31.1X23.3 |
34.6X26.1 |
|
XWD-HR0.3X210CT-5M |
同轴 |
0.3X |
210 |
0.025 |
0.06 |
17 |
6 |
C |
16X12 |
21.3X16 |
24X18 |
|
XWD-HR0.3X300C |
非同轴 |
0.3X |
300 |
0.02 |
0.06 |
23 |
7 |
C |
16X12 |
21.3X16 |
24X18 |
|
XWD-HR0.3X450C |
同轴 |
0.3X |
450 |
0.02 |
0.06 |
28 |
7 |
C |
16X12 |
21.3X16 |
24X18 |
|
XWD-HR0.5X350C |
非同轴 |
0.5X |
350 |
0.03 |
0.03 |
22 |
6 |
C |
9.6X7.2 |
12.8X9.6 |
14.4X10.8 |
|
XWD-HR0.5X180CT |
同轴 |
0.5X |
180 |
0.025 |
0.03 |
11 |
5 |
C |
9.6X7.2 |
12.8X9.6 |
14.4X10.8 |
|
XWD-HR0.5X180C |
非同轴 |
0.5X |
180 |
0.025 |
0.03 |
11 |
5 |
C |
9.6X7.2 |
12.8X9.6 |
14.4X10.8 |
